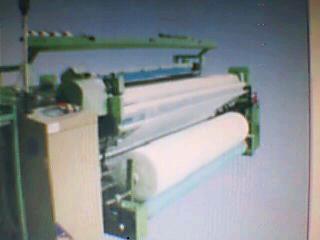

GA728 FLEXIBLE RAPIER FIBERGLASS LOOM CHARACTERISTIC
To satisfy the fiberglass loom requirement, we desigh the GA728 Leno rapier fiberglass loom, and the product made by the machine has higher quality and lower cost. The breadth range is 2.3m to 3.6. It adopts the single side method for inputting the abb; it can make the tension more balance,lower abb cost and lower noise. It is suitable for twisting griding fabic and square weaving. It has been adopted by many chinese famous enterprises.We have the patent for this machine.
Patent NO: ZL03255315.3 ZL03255541.5 ZL03255599.7
The Main Technology Capability
序号（Item） 机器(Model) HD968型绞织玻纤剑杆织机 Leno Rapier Fiberglass Loom
225(Model) 330(Model) 360(Model)
1 Working Width(mm) 2300 3000 3300
2 R.P.M Rotation Speed 110-170 100-150 100-150
3 Weft Selection Max:(4 colors)
4 Weft Density (12-40ROOT/CM)
5 WarpBeam Diameter(mm) 600
6 Full Take-up RollerDiameter 500-550(mm)
7 Motor Power (KW) 1.5 1.5 1.5
8 Overall Diamention (mm) L4850×W1827×H2120 L5600×W1827×H2120 L5900×W1827×H2120
